name: Lift Sliding Door
date: 2021-05-15 14:40:05
view: 227
about:

    When it comes to aluminum doors and windows for project and home design, Shandong laimeng international trade Co.,ltd, a subsidiary of LIMENG GROUP, has been provide to a trusted source for you. Founded in 2016. LIMENG GROUP (since 1996...




DETAIL

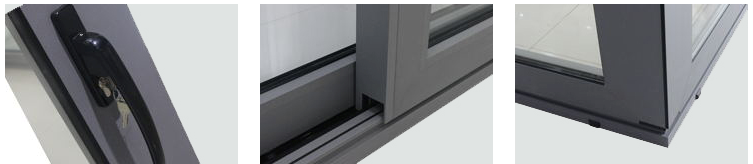

Lift Sliding Door(图1)

Features

● 140mm frame depth

● 22mm insulated glass

● 1.5mm extruded aluminum thickness

● 120μPowder coating thickness

●  300KG maximum moveable panel weight support

● Super energy saving design

● Internal and external reinforcement possible



Window Options

● A range of glazing options to achieve higher thermal performance

● Retractable fly screen can be fitted to prevent the insects

● Color matched insect and safety screen doors

● Can be in anodized coating for corrosion environment

● Federation or Colonial glazing bars

● Can be made into no supporting column with 90 degree corner design



Window Performance

Test Description

Test Result

Rating

Ultimate Strength

2700 Pa

C2

Water Penetation

300 Pa

C3

Wind Load Capacity

1600 Pa

C4

Air Infiltration

1.51 L/S Square meter

High



Window Colors

Laimeng chooses thicker anodized or powder coated aluminum for its strong and durable finish, to provide 10-20 years of quality satisfaction. We offer a standard range of colors to choose from, or can create a custom color to suit your individual design needs.
